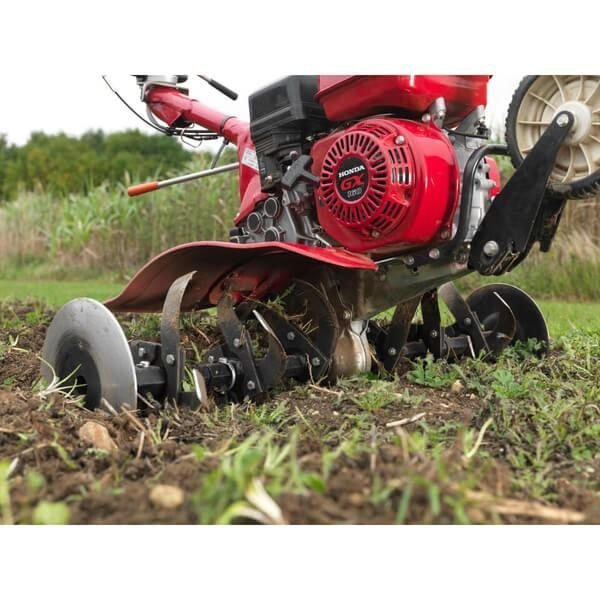

Introducing the Highly Efficient and Versatile FJ500 SER Tiller
For the serious gardener seeking exceptional results, the Compact Tiller Range offers a perfect blend of efficiency, power, and durability. These tillers are designed to provide a superior finish, leaving a lasting impression on your garden.
Impressive Performance and Versatility
Experience the power and versatility of our compact tillers, demonstrated by a range of impressive features. With a robust clutch and strong gearbox, these tillers channel power deep into the ground for effective tilling. The independent drive system ensures you can regulate forward motion with ease, giving you complete control over your gardening tasks.
Product Overview:
- Max Tilling Width: 800mm
- Max Tilling Depth: 325mm
- Wheels: Front transport wheel supplied as an optional attachment for UK only
- Side Discs: Yes
- Foldable Handle: Yes
- Height Adjustment Handle: Yes
Effortless Operation and Superior Finish
The Compact Tiller Range is designed for ease of use and exceptional results. The foldable handle allows for convenient storage when not in use, while the height adjustment handle ensures comfortable operation for users of all heights.
Whether you’re preparing flower beds, vegetable gardens, or clearing overgrown areas, these tillers deliver outstanding performance. The optional front transport wheel attachment, available for UK customers, provides added convenience for manoeuvring in tight spaces.
Upgrade Your Gardening Experience
Discover the power, efficiency, and versatility of the Compact Tiller Range. With its impressive tilling width, depth, and range of features, these tillers are the perfect choice for serious gardeners looking to achieve professional results. Elevate your gardening game today!
Function
Max tilling width (mm) 900
Max tilling depth (mm) 300
Forward speeds 1
Reverse speeds 1
Forward tool rotation speed (rpm) 113 rpm
Reverse tool rotation speed (rpm) 28rpm
Dimensions
Dimension (L x W x H) (mm) 1,395 x 925 x 990
Dry weight (kg) 45/57
ACC
Rotors/tines supplied Multiple rotor options
Side discs Yes
De-thatcher / scarifier Optional
Ridger Optional
Engine
Engine 4-stroke OHC
Engine model GX160
Engine displacement (cc) 163
Engine net power (kW/rpm) 3.4/3,600
Engine net torque (Nm/rpm) 10.3 / 2,500
Fuel tank capacity (Litres) 2.4
Engine oil capacity (Litres) 0.58
Starter Recoil
Drive clutch Manual – belt tension
Transmission Constant mesh
Final transmission Chain
Sound pressure at operators ears (dB(A)) 81
Guaranteed sound power level (dB(A)) 96
Vibration (m/sec²) 5.8
Handle
Foldable handle Yes
Height adjustable handle Yes
Honda (UK) and Honda Motor Company Ltd. guarantee the quality of Honda (UK) Power Equipment products, ensuring they are free from manufacturing and material defects.
As part of this warranty, Honda Authorised Dealers are committed to repairing or replacing any defective parts discovered within the specified warranty period. The repair service is provided at no cost for both materials and labour, in accordance with the terms and conditions specified for each product.
Core Lawnmowers: HRD, HRH, HRX, HRZ, and UM Grass Managers
7 year warranty for domestic use
1 year warranty for professional use
Cordless Range, Robotic Mowers (HRM40, HRM40 Live, HRM70 Live)
5 year warranty for domestic use
1 year warranty for professional use
Tillers, Ride-ons, Hand Held Range, Lawn Tractors, Split-shaft Brushcutters
5 year warranty for domestic use
1 year warranty for professional use
Izy range of Mowers HRG, HRS, and HRN
5 year warranty for domestic use
3 month warranty for professional use
Robotic Mowers (HRM310, HRM520 and HRM3000)
5 year warranty for domestic use
2 year warranty for professional use
